This article guides you in creating and defining a repeating pattern of automatic shift starts.
A schedule means your users won't need to start shifts because shifts are automated to start at pre-set times, defined by a schedule.
- Shifts can repeat a cyclical pattern of 1-52 weeks.
- Future shifts are able to be scheduled to 1-minute precision.
- Patterns able to be defined for both simple and complex scenarios
- Simple examples like 24 x 5 (3 shifts, 5 days a week)
- More complex patterns with e.g. 4 days on, 4 days off can also be defined
Important Note
Schedules are intended to start shifts on your OFS enabled lines, but your operators are still responsible for recording data once the shift has begun, and still need to end shifts at the end of the production run.
Defining Schedules

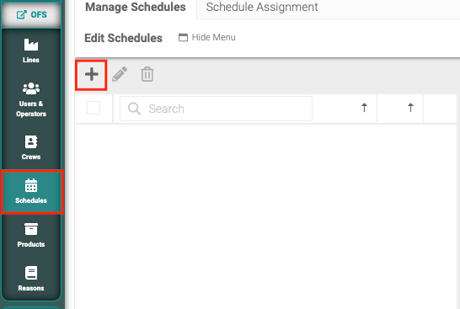

Step 1 - Navigate to the Schedules tab in Fusion Manager
Step 2 - Click the + icon to add a schedule
Step 3 - Name the Schedule. We recommend naming it the same as the Line Name.
Step 4 - Tick the Multi-Week Schedule only if you have changing a shift pattern.
Note: Do not tick Multi-Week if your schedule has a repeat cyclical pattern.
Step 5 - Click the Expand icon

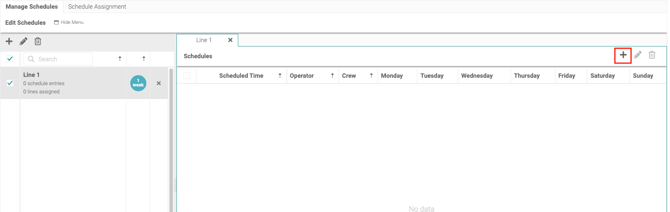

Step 6 - Click the + icon in the top right corner
Step 7 - Select the first shift start using the drop-down e.g. 6am
Step 8 - Select the Operator. We recommend created a generic operator name e.g. Operator 1
Step 9 - Select the Crew e.g. Day Shift
Step 10 - Select the Days in which the shift will automatically start in the OFS console e.g. Monday - Friday
Step 11 - Click Save
Assigning a Schedule
In the Schedule Assignment tab, each OFS-enabled line can have either one or zero schedules assigned to it.

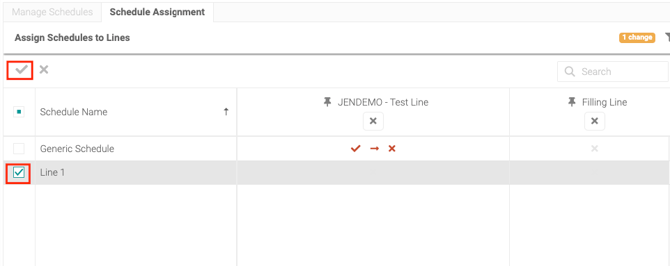

Step 1 - Navigate to the Schedule Assignment tab
Step 2 - Select the Schedule and click the Tick
Step 3 - Click Save in the top right corner
Important Note
The schedule will be live the moment you assign the line and click save.
