How to validate and differentiate between 0 and empty in Flow?

Example 1

• Valid if the field is = 0
• Error if the field is = empty

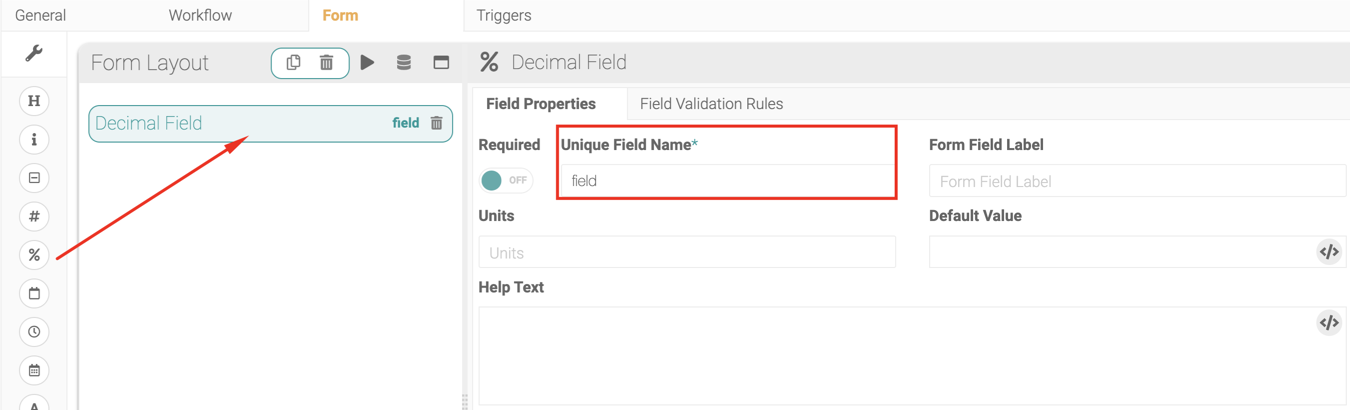

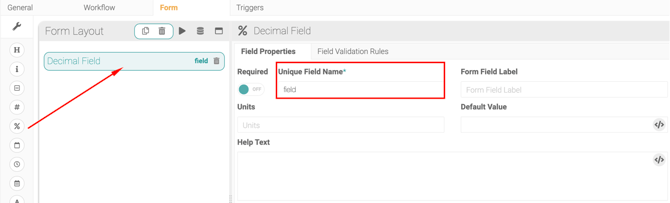

Step 1 — Create the decimal field

• Drag in the field from the left
• Enter a Unique Field Name

Step 2 — Open the field's validation rules

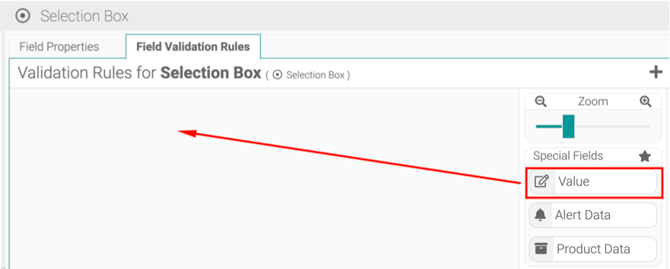

Click the Field Validation Rules tab and drag in the value field from the right, dropping it into the empty space.

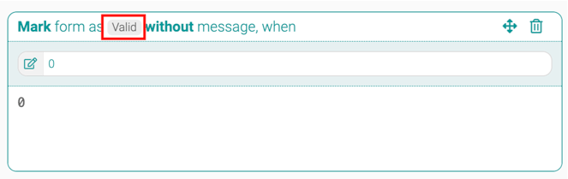

Step 3 — Set the rule outcome

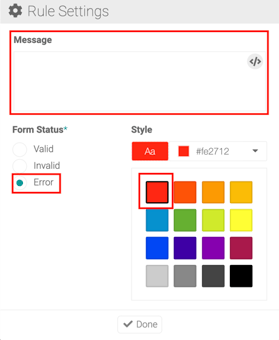

Click on the "Valid" word, then set the Form Status, colour, and a message if needed.

Note: The Error status will not allow the user to submit the form until the field is valid.

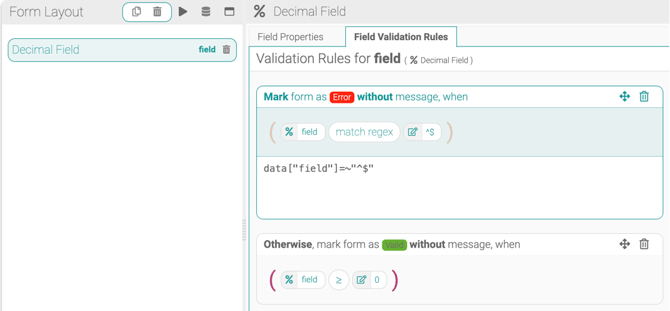

Step 4 — Add the empty-field rule

data["field"]=~"^$"

This marks the field as an error if it's empty.

Step 5 — Add the valid-if-zero-or-more rule

data["field"]>=0

This marks the field as valid if it's 0 or greater.



Example 2 — a field conditional on a Yes/No selection

• Selection Box = Yes or No
• Integer Field = numbers or can be empty
• Valid when the Selection Box field is Yes and the field is 0,
• Error when the Selection Box field is Yes and the field is empty
• Valid when the Selection Box is No and empty

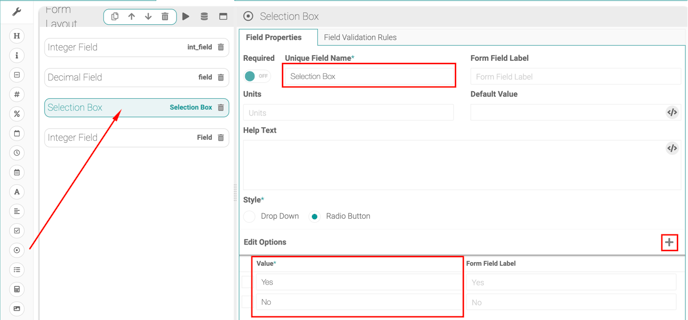

Step 1 — Create the selection field

• Drag in the field from the left
• Enter a Unique Field Name
• Click the + button and add the Yes/No values

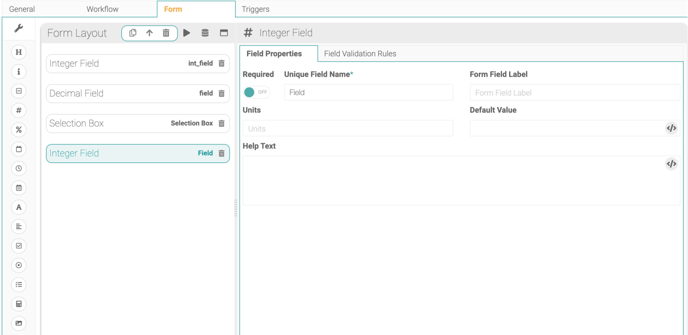

Step 2 — Create the integer field

Step 3 — Open the field's validation rules

Drag in the value field from the right and drop it into the empty space, then click on the "Valid" word and set the Form Status, colour, and a message if needed.

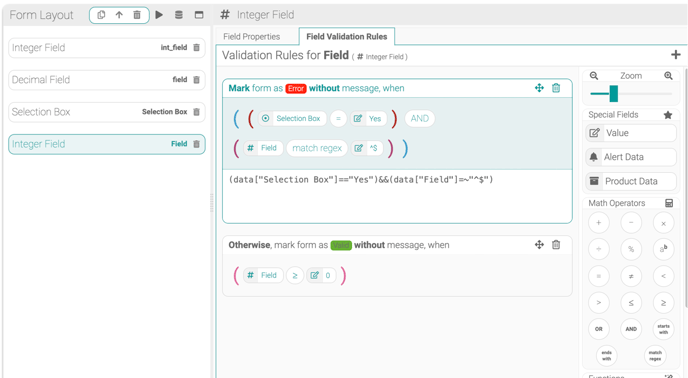

Step 4 — Add the conditional error rule

(data["Selection Box"]=="Yes")&&(data["Field"]=~"^$")

• This is an error if the selection is Yes and the field is empty.

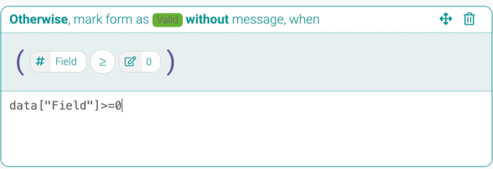

Step 5 — Add the valid-if-zero-or-more rule

data["Field"]>=0

• This is valid if the field is 0 or greater.
